Tmv120 Backlit Usb Portable Vibration Meter Two Button Batteries

Brand Name : TMTeck

Model Number : TMV120

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 20PCS/Two weeks

Delivery Time : 4-7 work days

Packaging Details : carton

Warranty : 2years

Accuracy : ±5% ± 2digits

Display : 3 1/2 digits LCD

Power supply : two button batteries(LR44 or SR44)

Operating temperature : 0℃ ~ 40℃

Humidity : <85%

Dimension : 150mm×22mm×16mm

name : TMV120 backlit USB Portable Vibration Meter two button batteries

Contact Now

TMV120 Portable Vibration Meter

[Introduction]

TMV120 portable vibration meter is suitable for routine vibration measurement, especially in reciprocating machinery vibration measurements. It can not only measure the vibration acceleration, velocity or displacement, but also for rotational speed measuring. In addition, It can measure the frequency or rotation rate of vibration.

This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.

[Features]

  • All English display, easy to operate. White backlight for better operation in the dark.
  • It is suitable for acceleration Peak data, velocity RMS data and Displacement Peak-Peak data measurement.
  • The frequency or rotation rate can be measured
  • Storage up to 100 points (10 data per point), a total of 1000 data and time.
  • Warning limit can be preset. Alarm when the measuring value exceeds the warning limit.
  • Provid high-performance rechargeable Li battery and charging control circuit inside with extra-long working and standby time. Battery sign, display the current remaining capacity.

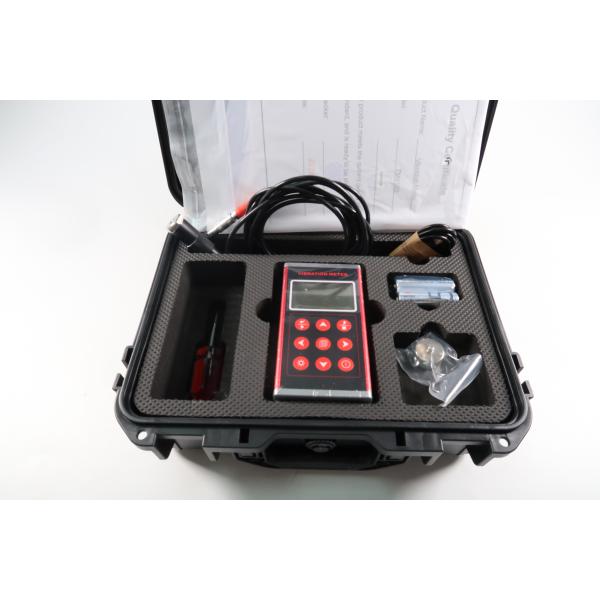

Configuration:

Standard configuration NO. Item Quantity
1 Main uni. 1
2 Power Adapters:output:5V/1000mA 1
3 Piezoelectric sensors 1
4 Magnetic seat 1
5 Manual 1
6 Package case 1
Optional configuration 7 Probe 1

Specifications:

Testing range

Acce: 0.1 m/s2 ~ 199.9 m/s2(peak)

Velo: 0.01 cm /s ~ 19.99cm /s(RMS)

Disp: 0.001mm ~ 1.999mm(peak-peak)
Freq range

Acce(LO): 10Hz ~ 1kHz

Acce(HI): 1kHz ~ 10kHz

Velo: 10Hz ~ 1kHz

Disp: 10Hz ~ 500Hz
Frequency measurement 3Hz～10KHz
rotation rate measurement 180rpm～60000rpm
Tolerance ±5%
Temp 0℃ ~ 40℃
Display LCD,128×64 pixels with LED backlight
Data memory 100×10
Data interface USB
Limit alarm Yes(Beep)
Battery AA×2
Continuous working time About 100h(without backlight)
Overall dimensions 126×66×31mm
Weight 228g

Tmv120 Backlit Usb Portable Vibration Meter Two Button Batteries

Tmv120 Backlit Usb Portable Vibration Meter Two Button Batteries
